Geocomposite PET-GG-PM 80/80 & PP-GTX-150, 3x35 (105 m²)
€387,26 EUR
Unit price
€3,69 EUR/m²
Shipping calculated at checkout.
Reliable shipping
Flexible returns

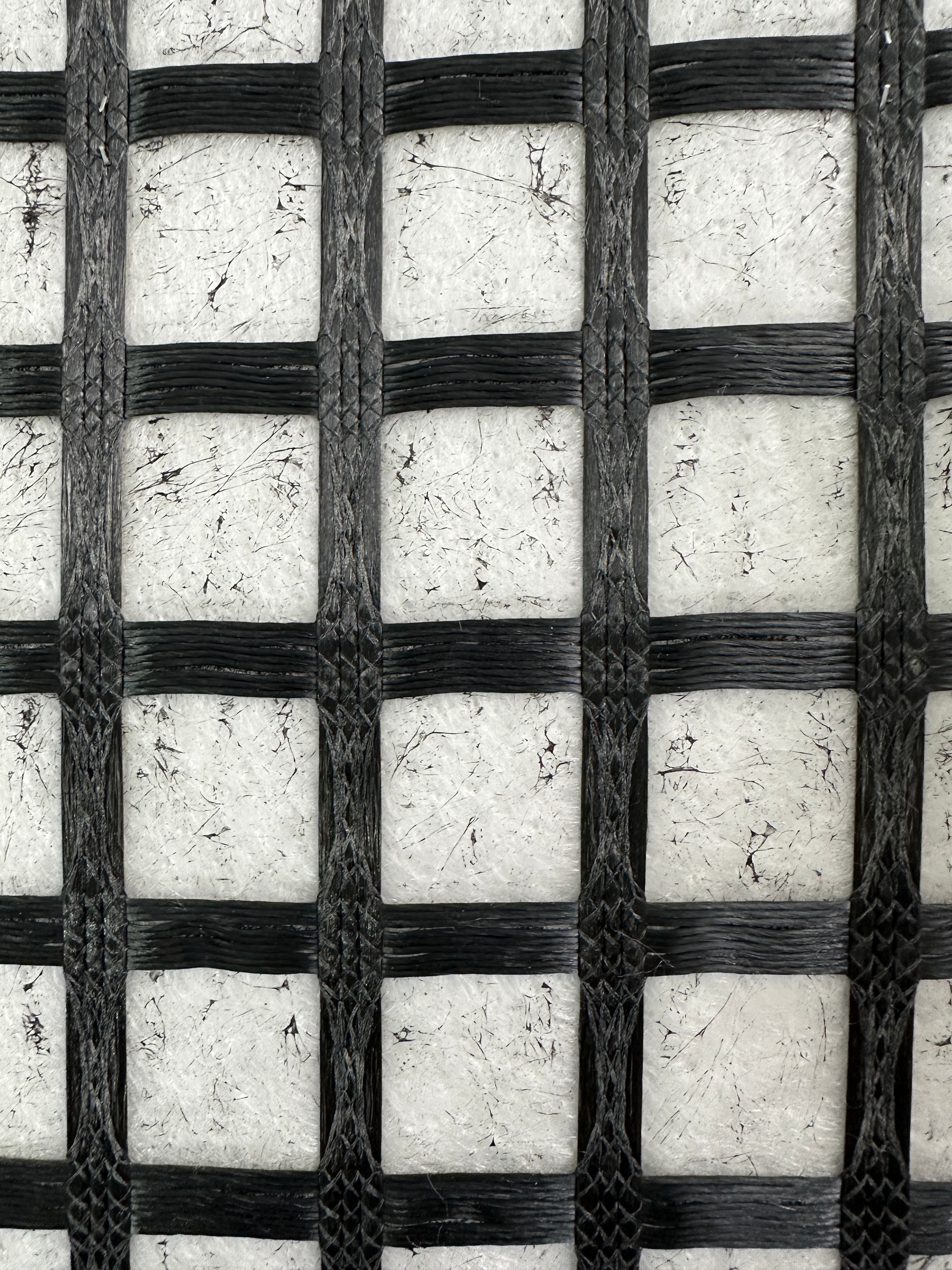

Flexible polyester geogrid with polymer coating 80/80 kN/m bonded with 150 g/m² polypropylene nonwoven roll 3x35 m (105m²) gross weight 50 kg
Item Attributes
| Geogrid: Material, MD/CMD | High-modulus polyester yarns in warp and weft |
| Geogrid: Nominal tensile strength (Tmax) MD/CD, kN/m, EN ISO 10319 | ≥80 / ≥80 |
| Geogrid: Strain at nominal tensile strength, % warp/weft | ≤10 / ≤10 |
| Geogrid: coating | Polymer coating |
| Nonwoven geotextile material, EN ISO 10318‑1: | Polypropylene (PP) |
| Geovliesstoff: Geotextil‑Robustheitsklasse nach M Geok E 2016 (Deutschland) | 3 |
| Geocomposite description: | reinforcement geogrid glued to nonwoven geotextile |
| Conformity marking | CE 2286 |
| Geocomposite type: | reinforcement geogrid bonded to nonwoven geotextile |
| Nonwoven geotextile: mass per unit area, EN ISO 9864, g/m² | 150 (+20%) |
| Nonwoven geotextile tensile strength, EN ISO 10319, MD / CD, kN/m | 11 (-9 %) |
| Nonwoven geotextile puncture resistance (CBR test), EN ISO 12236, kN | 1.70 (-10 %) |
